Robi EH Hydraulic breakers

Robi Excavator series hydraulic Hammers are designed for modern excavators, wheel loaders and fixed boom systems. They are ideal for demolition jobs and practically all civil engineering hammer jobs. Larger models are also suitable for production-based rock breaking, penetrative breaking and impact breaking.

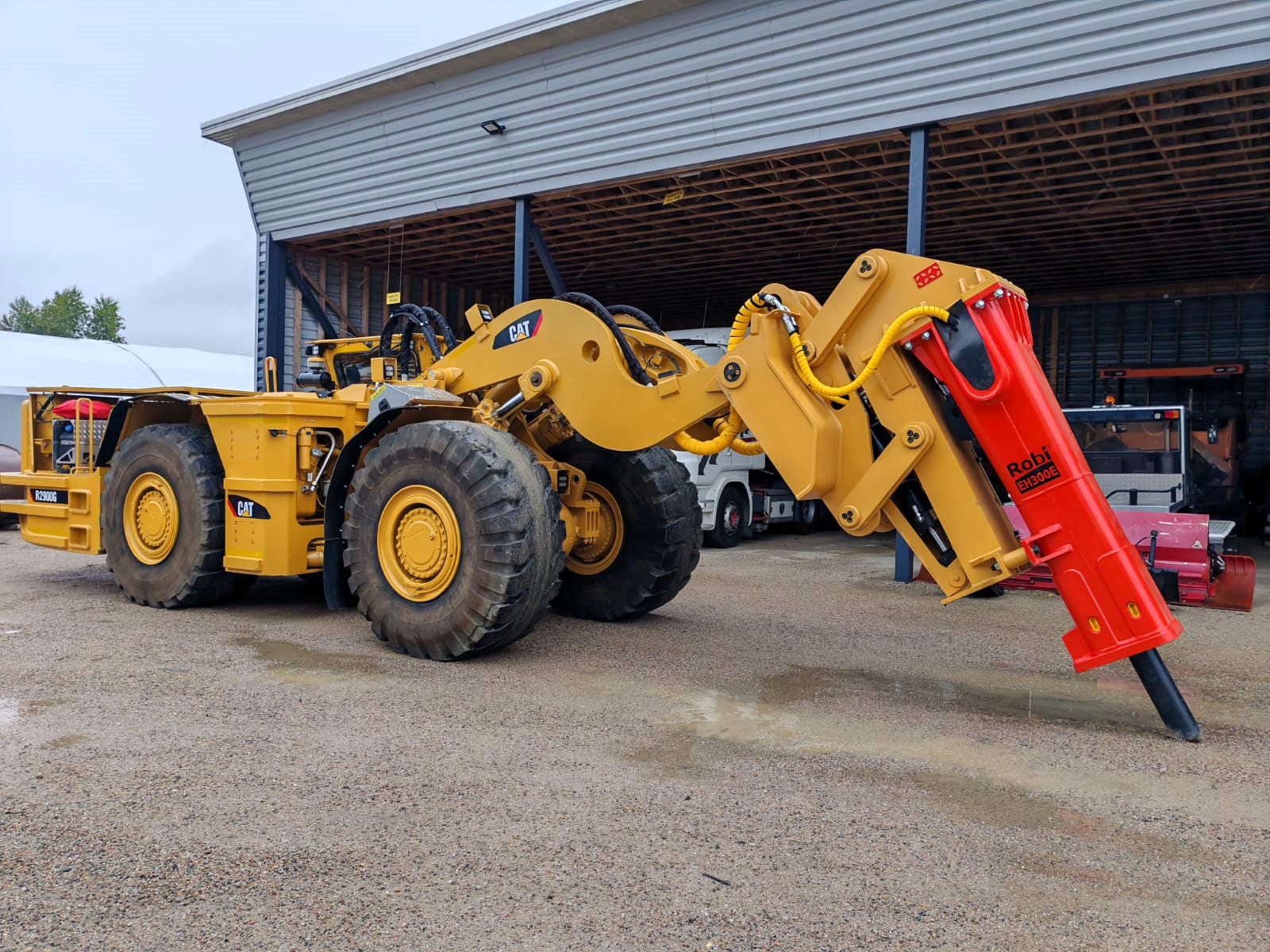

Robi EH300E

Product features

  • Sound suppressed housing
  • Automatic lubrication system
  • High pressure membrane accumulator eliminates Nitrogen leakages
  • Slim and robust housing with efficient vibration dampening
  • Fixed blow energy, every blow is equally powerful
  • Field replaceable lower tool bushing

Downloads

LanguageFilenameFiletypeFilesize
FinEsitepdf>383 KB
EngBrochurepdf>384 KB

Technical specs

Metric Imperial
EH100EEH140EEH170EEH240EEH300EEH400EEH800E
WeightOperating weightkg1020137017202360338047506000
Stroke frequencyImpact frequencybpm500 - 940430 - 790450 - 750370 - 630400 - 560370 - 530355-645
Stroke frequencyImpact frequency, longbpm---460 - 740520 - 700450 - 620300-520
PressureOperating pressurebar135-145140-160135-145150-160150-160160 - 170170 - 180
MinimumPressure relief, minbar190210190220210220230
MaximumPressure relief, maxbar220230220240230230240
Oil flowOil flow rangel/min100 - 140120 - 180140 - 200160 - 250250 - 350280 - 380360 - 460
RadiusTool diametermm115125135142166190215
Noise levelNoise level (2000/14/EC)dB(A)124127124124126126127
ExcavatorMachine weightt12 - 2018 - 2621 - 3027 - 4034 - 55 43 - 8065 - 120
